Doseuse remplisseuse verticale pour sac à poudre
Demande de devis
Application

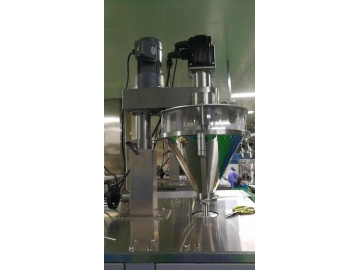

The vertical bag weigh filler for powder packaging is suitable for milk powder packaging, albumen powder packaging, solid beverage packaging, white granulated sugar packaging, glucose packaging, coffee packaging and so on. Our filler is designed with a weighing device, and the machine will finish weighing, feeding material, filling the bags, printing the production date, inflating and exhausting and conveying finished products automatically, as well as counting automatically.
| Model | DH-QL-420L |
| Quantifying method | Auger filling system |
| Size of the bag | L:80-300mm W:80-200mm |
| Packaging speed | 25 – 80 bags/min |
| Packaging accurancy | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% |
| Electrical requirements | 3P AC208-415V 50/60Hz |
| Total power | 4.7kw |
| Total weight | 630kg |
| Density of the compressed air | 6kg/m2 , 0.2m3/min |
| Dimension | 1650×1300×2580mm |
| Volume of hopper | 35 L |
