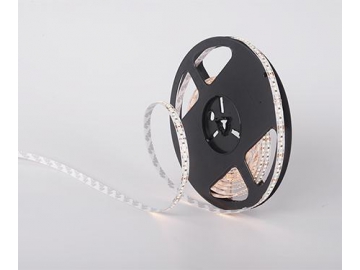

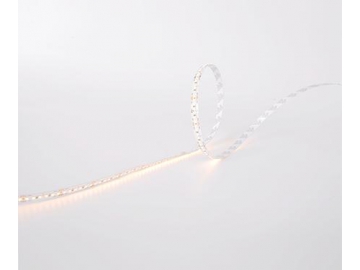

D6240 24V 8mm Flexible LED Light Strip
Demande de devis
À propos de: http://ledstrip-lightings.fr/3-led-neon-flex.html
Caractéristiques
- This flexible LED strip has a super-dense LED distribution of 240 LEDs per meter to offer more uniform linear lighting.
- The thickness of this LED strip is ultra-slim of 1.2mm, making it better match with the profiles.
- The self-encapsulated LED strip light can provide 5 optional 2700-6000K white lights.
- The 1BIN/2BIN delivery are offered with high color consistency.
- This LED strip uses high quality FPC and high thermal 3M adhesive to have good heat dissipation performance.
- The LED strip has a service life of more than 36000H.
Paramètres de base
| Taille | 5000×8×1.2mm |
| Unité de coupe | 6LEDs/25mm |
| Tension d’entrée | 24VDC |
| Courant d’entrée | 0.683A/1m &3A/5m |
| Puissance nominale | 16.4W/m |
| Puissance maximale | 19.2W/m |
| Diamètre de courbure | ＞60mm |
| Technologie de protection | EG/ET/EF |
Paramètres photoélectriques
| Indice de rendu de couleur | >90 |
| Température de couleur corrélée | 2700K/3000K/4000k/5000k/6000k |
| Lumen (m) | 1245/1300/1380/1400/1380 |
| Efficacité lumineuse (w) | 76/79/84/85/84 |
| Classe énergétique | A |
Profilés recommandés
- LS1613(B)
- LE2507
- LE2513
