Semi-remorque GPL

Demande de devis

À propos de: http://trailer-maker.fr/8-dump-trailer.html

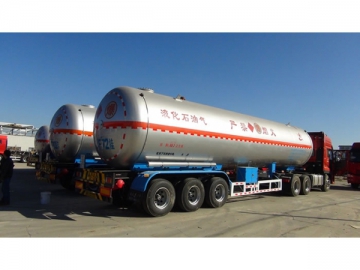

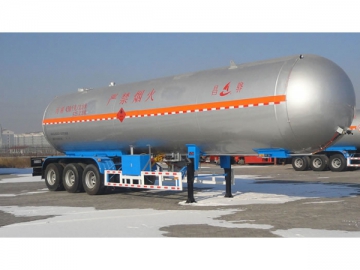

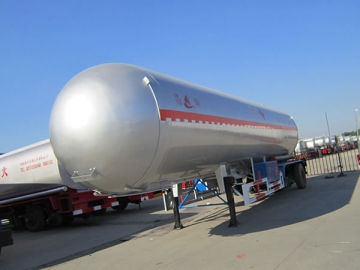

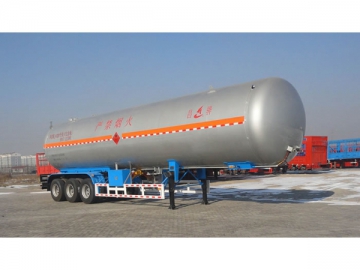

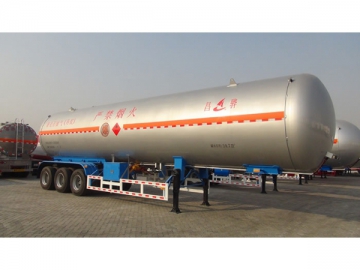

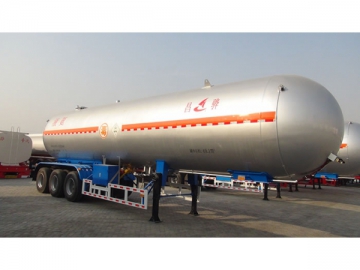

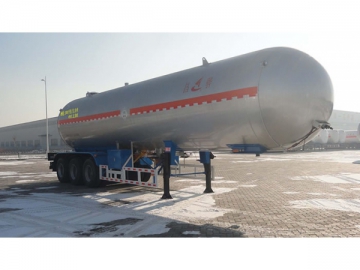

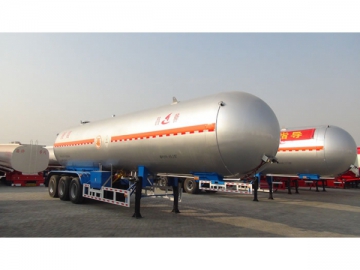

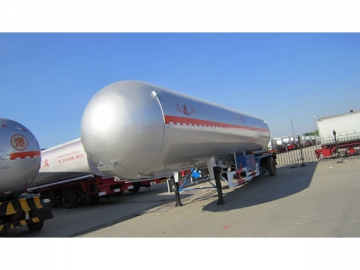

Constructed from high-strength, low-alloy steel Q345R/Q370R, Changhua LPG road tanker features a round body topped with either an oval or spherical cap that takes high pressure from media and various other loads. The LPG transport trailer or tanker truck is widely used to transport LPG (propane), LPG (propylene), Butadienes, isobutane, dimethyl ether, liquid ammonia, etc.

Design pressure: 0.7MPa~1.95MPa
Design temperature: 50°C
Tank volume: 36~59.7m³
Tank length: 10000~12850mm
Overall weight: 12t~15t

Features of Semi-remorque GPL
High strength, long use life, light overall weight

Spécifications Techniques

HCH9270GYQ

1. HCH9270GYQ Semi-remorque GPL

Model	HCH9270GYQ
Overall Dimensions (L×W×H)	10200×2500×3750
Axle	3
Effective Volume (m³)	36
Medium	Propane
Curb Weight(T)	12.24
Payload(T)	15.12
Medium Viscosity(kg/m³)	420

HCH9406GYQB

2. HCH9406GYQB Semi-remorque GPL

Model	HCH9406GYQB
Overall Dimensions (L×W×H)	13000×2500×4000
Axle	3
Effective Volume (m³)	59.7
Medium	Propane
Curb Weight(T)	14.926
Payload(T)	25.074
Medium Viscosity(kg/m³)	420

HCH9402GYQB

3. HCH9402GYQB Semi-remorque GPL

Model	HCH9402GYQB
Overall Dimensions (L×W×H)	12460×2500×3980
Axle	3
Effective Volume(m³)	49.1
Medium	Liquid ammonia
Curb Weight(T)	13.977
Payload(T)	26.023
Medium Viscosity(kg/m³)	530

HCH9403GYQB

4. HCH9403GYQB Semi-remorque GPL

Model	HCH9403GYQB
Overall Dimensions (L×W×H)	13000×2500×4000
Axle	3
Effective Volume(m³)	57.5
Medium	Propylene
Curb Weight(T)	15.175
Payload(T)	247.25
Medium Viscosity(kg/m³)	430

HCH9407GYQ

5. HCH9407GYQ Semi-remorque GPL

Model	HCH9407GYQ
Overall Dimensions (L×W×H)	11725×2500×3980
Axle	3
Effective Volume(m³)	51.4
Medium	Butadienes
Curb Weight(T)	11.73
Payload(T)	28.27
Medium Viscosity(kg/m³)	550

HCH9409GYQ

6. HCH9409GYQ Semi-remorque GPL

Model	HCH9409GYQ
Overall Dimensions (L×W×H)	12573×2500×3985
Axle	3
Effective Volume (m³)	55.85
Medium	Isobutane
Curb Weight(T)	12.633
Payload(T)	27.367
Medium Viscosity(kg/m³)	490

HCH9405GYQ

7. HCH9405GYQ Semi-remorque GPL

Model	HCH9405GYQ
Overall Dimensions (L×W×H)	11480×2500×3990
Axle	3
Effective Volume(m³)	48
Medium	Dimethyl Ether
Curb Weight(T)	13
Payload(T)	27
Medium Viscosity(kg/m³)	562

HCH9400GYQ

8. HCH9400GYQ Semi-remorque GPL

Model	HCH9400GYQ
Overall Dimensions (L×W×H)	12370×2490×3970
Axle	3
Effective Volume(m³)	53.9
Medium	Propylene
Curb Weight(T)	17.68
Payload(T)	22.3
Medium Viscosity(kg/m³)	420

HCH9401GYQ

9. HCH9401GYQ Semi-remorque GPL

Model	HCH9401GYQ
Overall Dimensions (L×W×H)	12322×2500×3920
Axle	3
Effective Volume(m³)	55.14
Medium	Petroleum gas
Curb Weight(T)	16.82
Payload(T)	23.16
Medium Viscosity(kg/m³)	420

HCH9404GYQ

10. HCH9404GYQ Semi-remorque GPL

Model	HCH9404GYQ
Overall Dimensions (L×W×H)	12982×2500×3990
Axle	3
Effective Volume(m³)	56.2
Medium	Propane
Curb Weight(T)	16.396
Payload(T)	23.604
Medium Viscosity(kg/m³)	420

HCH9406GYQA

11. HCH9406GYQA Semi-remorque GPL

Model	HCH9406GYQA
Overall Dimensions (L×W×H)	13000×2500×3995
Axle	3
Effective Volume (m³)	58.3
Medium	Propane
Curb Weight(T)	15.514
Payload(T)	24486
Medium Viscosity(kg/m³)	420

HCH9403GYQ

12. HCH9403GYQ Semi-remorque GPL

Model	HCH9403GYQ
Overall Dimensions (L×W×H)	12863×2500×3920
Axle	3
Effective Volume(m³)	50.8
Medium	Propylene
Curb Weight(T)	18.15
Payload(T)	21.85
Medium Viscosity(kg/m³)	430

HCH9402GYQ

13. HCH9402GYQ Semi-remorque GPL

Model	HCH9402GYQ
Overall Dimensions (L×W×H)	12550×2500×3830
Axle	3
Effective Volume(m³)	44.42
Medium	Liquid ammonia
Curb Weight(T)	16.9
Payload(T)	23.1
Medium Viscosity(kg/m³)	520

HCH9402GYQA

14. HCH9402GYQA Semi-remorque GPL

Model	HCH9402GYQA
Overall Dimensions (L×W×H)	11505×2500×3980
Axle	3
Effective Volume(m³)	46
Medium	Liquid ammonia
Curb Weight(T)	16.08
Payload(T)	23.92
Medium Viscosity(kg/m³)	520
