Marine & Vehicle Aluminum Composite Panel, ACP Panel
Aluwedo® Aluminum composite panel possesses the characteristics as light weight and high rigidity, making it ideal for transport vehicle Industry. Due to the lightweight structure, the CO2 emission can be reduced and at the same time, there will be less burden on the restricted rail and road networks. Aluwedo composite panel is recyclable. The used panels will be fed back into the material cycle and used for producing new materials.

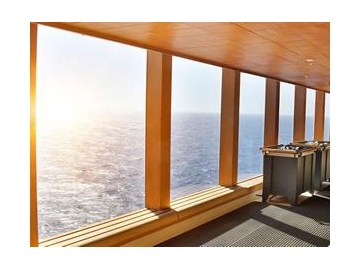

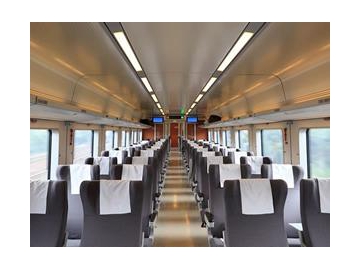

Aluwedo® composite panels are ideal for special interior fittings, such as wall and ceiling cladding in rail vehicle construction, lorry superstructures, cabins, doors and flap systems, etc.
Advantages
1. Easy to be fabricated
2. Light weight
3. Excellent flatness and high flexural strength
4. Versatile processing options using routing and folding techniques
5. A variety of panel specifications for option
6. High gloss finish over than 95% degree
7. Easily cleaned surface
8. Resistant to fungus, moss, decay, light and UV
9. Extreme large durability
10. Recyclable
Raw Material
a. High strength aluminum alloy A1100
b. LDPE core
c. Surface coating: PE coating, and Dupont adhesive film
Specifications and Dimension
a. Thickness: 2-8mm
Recommended thickness: 3mm
b. Width: 1000-2000mm
Recommended width: 1220mm, 1250mm, 1500mm, 2000mm
c. Length: up to 5800mm or others as required
d. Aluminum thickness: 0.21~0.5mm
e. *Custom width and length is available upon request (subject to the minimum order quantities)
| Testing item | Standard | Result |
| Unit weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal expansion | ASTM D696 | 24-28 |
| Thermal deformation temperature | ASTM D648 | 115℃ |
| Thermal conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural rigidity | ASTM D393 | 14.0*10^5 |
| Impact resistance | ASTM D732 | 1.64kgf |
| Adhesive strength | ASTM D903 | 0.77kg/mm |
| Flexural elasticity | ASTM D790 | 4030kg/mm2 |
| Shear resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire propagation | ASTM E84 | qualified |
| Wind-pressure resistant | ASTM E330 | passed |
| Waterproof property | ASTM E331 | passed |
