EVsmart series AC charging terminals (floor type)

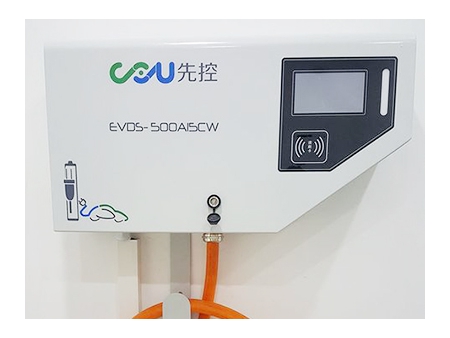

EV Mini AC Charger (wall-mount type)

Our AC electric vehicle charging station is able to charge all vehicle brands that are designed with a Mode 3 charging method: specifically a socket, plug, and dedicated circuit. This charging station series is applicable to both indoor and outdoor installation due to its compact structure and attractive appearance.

The AC electric vehicle charging station provides 5 different charging powers with a maximum of 43kW, and you can choose either wall-mount or floor types according to your specific requirements.

Applications

Private houses, companies, hotels, parking lots and Plus

Advantages

Mode-3 charging method (specific socket and plug and a dedicated circuit), and use Type 2 plug (single and three-phase vehicle coupler)
The charging piles can connect with single or three phase power supply, capacity is 16A, 32A, or 63A
Immediate charge once plugged in
Compact structure and small dimension
IP55 protection level
You can selectively assemble an electric meter and RFID (radio frequency identification) authorization device
Low operating noise
Customization according to specific requirements

Paramètres techniques

Series	EVmini			EVsmart
Model	EVMS-3.7		EVMS-7.4	EVMS-11		EVMS-22		EVMS-43
AC input
Power connection	1P N PE			3P N PE
Input voltage	230 Vac ± 20%			400 Vac ± 20%
Input frequency	50 Hz or 60 Hz
Input current	16A		32A	16A			32A		63A
Power factor	> 0.99
Overall efficiency	95%
Sortie AC
Output voltage	230 Vac ± 20%			400 Vac ± 20%
Output current	16A	32A		16A			32A		63A
Rated power	3.7KW	7.4KW		11KW			22KW		43KW
Leakage protection	Type A			Type B
General Specifications
Type 2 Sortie AC (Mode-3)
AC plug	IEC62196 Type-2 plug
Communication methods	Ethernet			Ethernet, CAN, RS-485, 3G/4G, Wi-Fi
Communication protocols	Pilot signal according to IEC61851
Environment	Indoor/outdoor
Operating temperature	-35ºC-60ºC ( -20ºC to -30ºC, heating required)
Storage temperature	-40 ºC to 70 ºC
Operating humidity	≤95% non-condensing
Altitude height	< 1000 m
Protection level	IP55 , IK10
Acoustic noise	< 55 dB
Dimension (WDH) mm	350150180				2702501700
Compliance and safety	EN 61851, EN 62196.
