This product has been discontinued and removed from our shelves.

Characteristics of W11 Mechanical 3-roller Symmetrical Plate Rolling Machine

W11 mechanical 3-roller symmetrical plate rolling machine is designed with three roller symmetrical structure.
With the transmission of lead screw, nut and worm, the upper roller moves vertically in the center between the two lower rollers.
The two lower rollers rotate and can provide torque for plate materials through the engagement of the output gear of speed reducer and the gear of the lower rollers.
This plate rolling machine has a compact structure and is easy to operate and maintain.

Parameters of W11 series Mechanical 3-roller Symmetrical Plate Rolling Machine

Specification	Max. Thickness of Coiled Plate	Max. Width of Coiled Plate	Yielding Limit of Sheet Metal	Coiling Speed	Min. Full Loading Diameter of Coiled Plate	Diameter of Top Shaft	Diameter of Bottom Shaft	Central Distance Between Bottom Shafts	Main Motor Power
Specification	mm	mm	mm	m/min	mm	mm	mm	mm	kw
W11-4×1500	4	1500	245	5	300	150	140	185	3
W11-6×1500	6	1500	245	5	380	160	140	220	4
W11-6×2000	6	2000	245	4.5	380	170	160	260	5.5
W11-6×3200	6	3200	245	4.5	380	220	180	280	7.5
W11-8×2000	8	2000	245	4.5	400	185	170	260	5.5
W11-8×2500	8	2500	245	4.5	550	240	180	280	7.5
W11-12×2000	12	2000	245	4.5	550	240	180	280	7.5
W11-12×2500	12	2500	245	4.5	600	260	220	320	11
W11-12×3000	12	3000	245	4	700	280	240	360	11
W11-16×2000	16	2000	245	4	600	260	220	320	7.5
W11-16×2500	16	2500	245	4	700	280	240	360	11
W11-16×3000	16	3000	245	4	850	340	260	430	15
W11-20×2000	20	2000	245	4	700	280	240	360	11
W11-20×2500	20	2500	245	4	850	340	260	430	15
W11-25×2000	25	2000	245	4	850	330	270	430	15
W11-25×2500	25	2500	245	4	900	370	270	480	22
W11-30×2500	30	2500	245	4	1200	420	360	550	30
W11-30×3000	30	3000	245	4	1200	450	390	600	37

Characteristics of W11 Hydraulic 3-roller Symmetrical Plate Rolling Machine

W11 hydraulic 3-roller symmetrical plate rolling machine is designed with three roller symmetrical structure.
The hydraulic oil in hydraulic cylinder pushes the plunger to drive the upper roller moving vertically in the center between the two lower rollers.
The two lower rollers rotate and can provide torque for plate materials through the engagement of the output gear of speed reducer and the gear of the lower rollers.
This plate rolling machine has a compact structure and is easy to operate and maintain.

Parameters of W11 Hydraulic 3-roller Symmetrical Plate Rolling Machine

Specification	Max. Thickness of Coiled Plate	Max. Width of Coiled Plate	Yielding Limit of Sheet Metal	Coiling Speed	Min. Full Loading Diameter of Coiled Plate	Diameter of Top Shaft	Diameter of Bottom Shaft	Central Distance Between Bottom Shafts	Main Motor Power	Hydraulic Motor Power
Specification	mm	mm	mm	m/min	mm	mm	mm	mm	kw	kw
W11Y-30×2000	30	2000	245	4	1200	360	290	480	22	7.5
W11Y-25×2500	25	2500	245	4	1200	370	300	480	22	7.5
W11Y-30×2500	30	2500	245	4	1200	420	360	550	30	11
W11Y-25×3000	25	3000	245	4	1200	430	370	550	30	11
W11Y-30×3000	30	3000	245	4	1200	450	390	600	30	11
W11Y-40×2500	40	2500	245	3.5	1400	500	400	600	37	15
W11Y-40×3000	40	3000	245	3.5	1600	540	440	600	45	18.5
W11Y-50×3000	50	3000	245	3.5	2000	580	480	750	55	22
W11Y-60×3000	60	3000	245	3.5	2400	660	560	800	75	30
W11Y-70×3000	70	3000	245	3.5	2800	710	620	850	90	37
W11Y-80×3000	80	3000	245	3.5	3200	770	680	900	90	37
W11Y-90×3000	90	3000	245	3.5	3600	820	730	950	110	45
W11Y-100×3000	100	3000	245	3.5	4000	860	770	1000	110	45
W11Y-110×3000	110	3000	245	3.5	4000	900	810	1080	132	55
W11Y-120×3000	120	3000	245	3.5	4800	950	860	1160	132	55

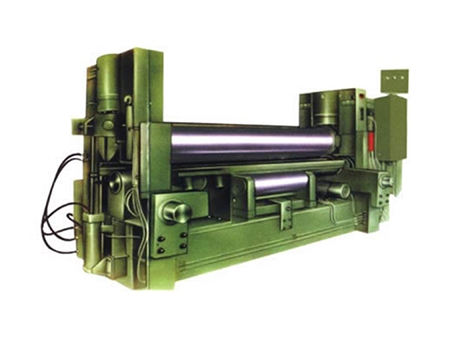

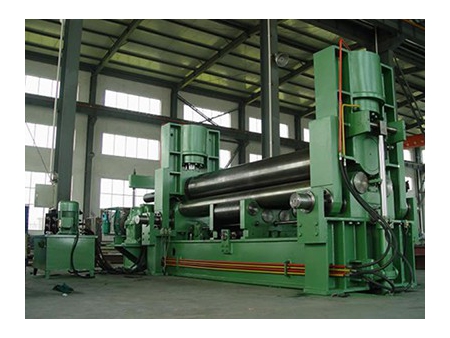

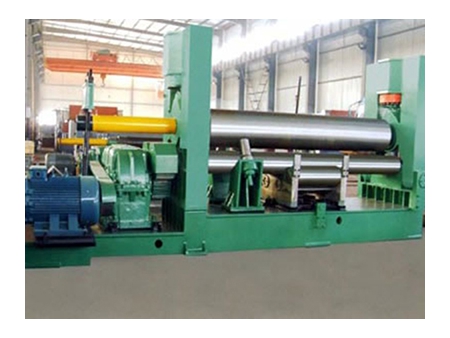

Characteristics of W11S series Upper Roller Universal Plate Rolling Machine

After you have set the length of straight flange freely, the upper roller can directly force on the ends of the materials to pre-bend them. This plate rolling machine provides high pre-bending accuracy.
Our upper roller universal plate rolling machine adopts NC control to ensure the high efficiency and easy operation.
The finished plate materials are of high precision. The upper roller which seems like a drum, together with lower rollers which has carrier rollers below, can process the sheet and thick boards into your desired products through continuously bending.
Since the two lower rollers are fixed and only the upper roller moves up and down, left and right, the plate materials will not move with the working rollers. So the safety of operators can be guaranteed.
Our plate rolling machine is designed as a whole, so it is quite convenient and easy to move the machine. No anchor bolt is needed.
According to different usages of plate materials, our plate rolling machine can carry out different control modes. TNC (upper NC) is applied in the condition that the required products are of many varieties and small quantity. T&BNC (upper, lower NC) is utilized in the condition that the required products are of few varieties and large quantity.
The plate materials can be process into O type, U type and multistage R type by our plate rolling machine. If the plate rolling machine is fitted with conical drum device, it can also be used to process materials into conical drum.

Parameters of High Precision Small Upper Roller Universal Plate Rolling Machine

Model	Max. rolling thickness (mm)	Max. pre-rolling thickness (mm)	Max. Plate width (mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	Main motor power (kw)
Model	Max. rolling thickness (mm)	Max. pre-rolling thickness (mm)	Max. Plate width (mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	for Driving	for Hydraulic	for Shift
W11SNC-12×2000	12	10	2000	250	145	4.5	4	1.1
W11SNC-14×2000	10	12	2000	250	145	5.5	4	1.1
W11SNC-15×2000	14	12	2000	250	150	5.5	4	1.1
W11SNC-16×2000	16	14	2000	255	150	7.5	4	1.1
W11SNC-16×2500	16	16	2500	300	165	15	4	1.1
W11SNC-17×2500	16	16	2500	300	180	15	5.5	1.5
W11SNC-18×3000	18	16	3000	350	180	15	5.5	1.5
W11SNC-20×2500	20	21	2500	330	180	15	5.5	1.5
W11SNC-20×3000	20	21	3000	375	200	18.5	5.5	2.2
W11SNC-25×2500	25	21	2500	380	220	22	5.5	2.2
W11SNC-25×3000	25	21	3000	425	235	30	7.5	2.2
W11SNC-25×3500	25	25	3500	440	235	30	7.5	2.2
W11SNC-25×6000	25	25	6000	630	300	45	7.5	2.2
W11SNC-30×2500	30	28	2500	410	235	30	7.5	4
W11SNC-30×3000	30	30	3000	450	250	37	7.5	4
W11SNC-32×3000	32	30	3000	480	260	37	7.5	4
W11SNC-35×2500	35	32	2500	460	260	37	11	4
W11SNC-35×3000	35	32	3000	510	275	45	11	4
W11SNC-40×2500	40	32	2500	500	275	45	11	4

Parameters of High Precision Large or Medium-Sized Upper Roller Universal Plate Rolling Machine

Model	Max. rolling thickness (mm)	Max. pre-rolling thickness(mm)	Max. Plate width(mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	Main motor power (kw)
Model	Max. rolling thickness (mm)	Max. pre-rolling thickness(mm)	Max. Plate width(mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	For Driving	For Hydraulic	For Shift
W11SNC-40×3000	40	50	4000	750	420	90	15	5.5
W11SNC-40×4000	40	55	5000	820	440	90	15	5.5
W11SNC-45×3000	45	55	3000	650	380	75	22	5.5
W11SNC-45×4000	45	60	4000	780	440	90	22	5.5
W11SNC-50×3000	50	60	4000	810	460	90	22	5.5
W11SNC-50×4000	50	65	3000	710	420	75	22	5.5
W11SNC-55×4000	55	70	4000	840	480	110	22	7.5
W11SNC-55×5000	55	70	3000	740	440	90	22	7.5
W11SNC-60×3000	60	75	3000	770	460	90	22	7.5
W11SNC-60×4000	60	85	4000	900	520	110	22	7.5
W11SNC-65×4000	65	85	3000	800	480	110	22	7.5
W11SNC-70×3000	70	95	3000	860	480	110	22	7.5
W11SNC-70×4000	70	100	4000	940	560	132	22	7.5
W11SNC-75×3000	75	110	4000	990	600	160	22	7.5
W11SNC-80×3000	80	120	3000	900	580	160	22	7.5
W11SNC-80×4000	80	130	3000	960	600	160	22	7.5
W11SNC-85×3000	85	140	3000	1080	650	2x90	22	7.5

Parameters of High Precision Large or Medium-Sized Upper Roller Universal Plate Rolling Machine

Model	Max. rolling thickness(mm)	Max .pre-rolling thickness(mm)	Max. Plate width(mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	Main motor power (kw)
Model	Max. rolling thickness(mm)	Max .pre-rolling thickness(mm)	Max. Plate width(mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	For Driving	For Hydraulic	For Shift
W11SNC-100×4000	100	100	4000	940	560	132	22	5.5
W11SNC-110×4000	110	110	4000	990	600	160	22	5.5
W11SNC-120×3000	120	120	3000	900	580	160	22	5.5
W11SNC-130×3000	130	130	3000	960	600	160	22	7.5
W11SNC-150×3000	150	150	3000	1080	650	2x90	22	7.5
W11SNC-160×4000	160	160	4000	1260	670	2x90	22	7.5
