Adaptateurs / Raccords d'adaptation / Adaptateur de tige de forage
Demande de devis
À propos de: http://max-drilling.fr/2-4-dth-drill-adaptors.html

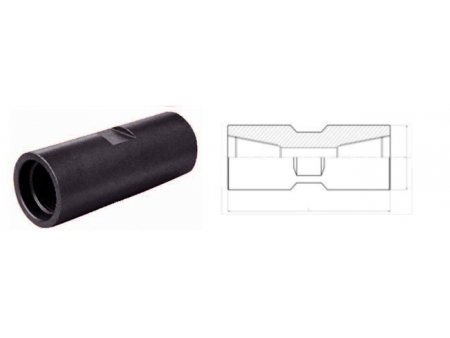

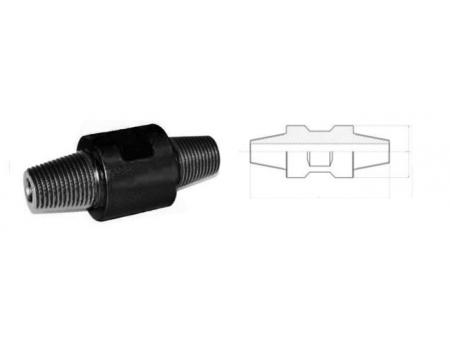

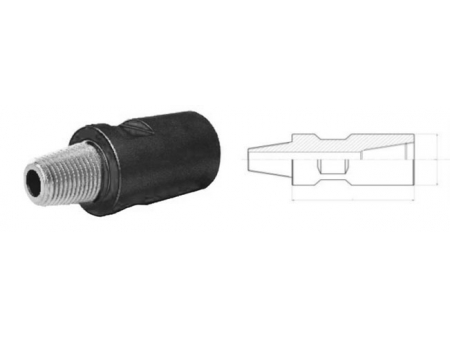

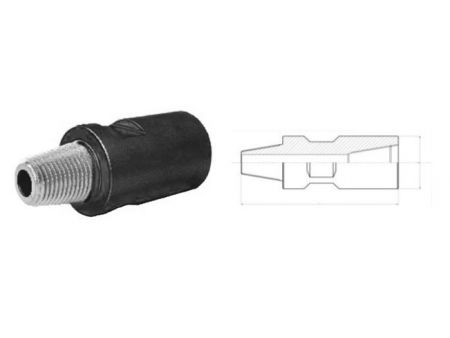

Maxdrill propose des adaptateurs de forage de fond de trou avec un filetage mâle-mâle, femelle-femelle et mâle-femelle, qui sont dotés d’une qualité exceptionnelle. Les diverses tailles d'adaptateurs conviennent à des applications variées.
| Filetage de la broche | Filetage de la boîte | Diamètre/ A(mm) | Longueur/L(mm) | Poids/kg |
| API 2-3/8REG | API 2-3/8REG | 76 | 200-300 | 5.5-8.5 |
| API 2-3/8REG | API 2-3/8REG | 83 | 200-500 | 7-8 |
| API 2-3/8REG | API 2-3/8REG | 89 | 200-500 | 7.5 -20.5 |
| API 2-7/8REG | API 2-7/8REG | 102 | 200-500 | 10.5-30 |
| API 3-1/2REG | API 3-1/2REG | 114 | 200-500 | 12-35 |
| API 3-1/2REG | API 3-1/2REG | 127 | 200-500 | 14-41 |
| API 3-1/2REG | API 3-1/2REG | 133 | 200-500 | 16-48 |
| API 4-1/2REG | API 4-1/2REG | 140 | 200-500 | 18-51 |
| API 5-1/2REG | API 5-1/2REG | 152 | 200-500 | 20-60 |
| API 6-5/8REG | API 6-5/8REG | 178 | 200-500 | 26-80 |
| API 7-5/8REG | API 7-5/8REG | 194 | 200-500 | 30-95 |
| CUB 21# | CUB 21# | 89 | 200-500 | 7.5 -20.5 |
| CUB 21# | CUB 21# | 102 | 200-500 | 10.5-30 |
| CUB 24# | CUB 24# | 102 | 200-500 | 10.5-30 |
| CUB 28# | CUB 28# | 114 | 200-500 | 12-35 |
| CUB 28# | CUB 28# | 127 | 200-500 | 14-41 |
| Z 2-1/2 | Z 2-1/2 | 102 | 200-500 | 10.5-30 |
| DIBH 3-1/8 | DIBH 3-1/8 | 102 | 200-500 | 10.5-30 |
| DIBH 3-1/2 | DIBH 3-1/2 | 114 | 200-500 | 12-35 |
| Filetage de la broche | Filetage de la broche | Diameter/ A(mm) | Longueur/L(mm) | Poids/kg |
| API 2-3/8REG | API 2-7/8REG | 102 | 200-300 | 10-17 |
| API 2-3/8REG | API 3-1/2REG | 114 | 200-500 | 12-35 |
| API 2-7/8REG | API 2-3/8REG | 102 | 200-500 | 10-30 |
| API 2-7/8REG | API 3-1/2REG | 114 | 200-500 | 12-35 |
| API 2-7/8REG | API 4-1/2REG | 140 | 200-500 | 18-51 |
| API 3-1/2REG | API 2-3/8REG | 114 | 200-500 | 12-35 |
| API 3-1/2REG | API 2-7/8REG | 114 | 200-500 | 12-35 |
| API 3-1/2REG | API 4-1/2REG | 140 | 200-500 | 18-51 |
| API 4-1/2REG | API 3-1/2REG | 140 | 200-500 | 18-51 |
| API 4-1/2REG | API 5-1/2REG | 168 | 200-500 | 25-73 |
| API 5-1/2REG | API 4-1/2REG | 168 | 200-500 | 25-73 |
| API 5-1/2REG | API 6-5/8REG | 178 | 200-500 | 26-80 |
| API 6-5/8REG | API 5-1/2REG | 178 | 200-500 | 26-80 |
| API 6-5/8REG | API 4-1/2REG | 178 | 200-500 | 26-80 |
| API 6-5/8REG | API 7-5/8REG | 194 | 200-500 | 30-95 |
| Filetage de la broche | Filetage de la broche | Diameter/A(mm) | Longueur/L(mm) | Poids/kg |
| API 2-3/8REG | API 2-3/8REG | 76 | 100-500 | 5.5-14.5 |
| API 2-3/8REG | API 2-7/8REG | 102 | 100-500 | 10.5-30 |
| API 2-3/8REG | API 3-1/2REG | 114 | 100-500 | 12-35 |
| API 2-7/8REG | API 2-7/8REG | 102 | 100-500 | 10.5-30 |
| API 2-7/8REG | API 2-3/8REG | 102 | 100-500 | 10.5-30 |
| API 2-7/8REG | API 3-1/2REG | 114 | 100-500 | 12-35 |
| API 2-7/8REG | API 4-1/2REG | 114 | 100-500 | 12-35 |
| API 3-1/2REG | API 3-1/2REG | 114 | 100-500 | 12-35 |
| API 3-1/2REG | API 2-3/8REG | 114 | 100-500 | 12-35 |
| API 3-1/2REG | API 2-7/8REG | 140 | 100-500 | 18-51 |
| API 3-1/2REG | API 4-1/2REG | 140 | 100-500 | 18-51 |
| API 4-1/2REG | API 4-1/2REG | 140 | 100-500 | 18-51 |
| API 4-1/2REG | API 3-1/2REG | 140 | 100-500 | 18-51 |
| API 4-1/2REG | API 5-1/2REG | 168 | 100-500 | 25-73 |
| API 5-1/2REG | API 5-1/2REG | 168 | 100-500 | 25-73 |
| API 5-1/2REG | API 4-1/2REG | 168 | 100-500 | 25-73 |
| API 5-1/2REG | API 6-5/8REG | 168 | 100-500 | 25-73 |
| API 6-5/8REG | API 6-5/8REG | 178 | 100-500 | 26.5-80.5 |
| API 6-5/8REG | API 5-1/2REG | 178 | 100-500 | 26.5-80.5 |
| API 6-5/8REG | API 4-1/2REG | 178 | 100-500 | 26.5-80.5 |
| API 6-5/8REG | API 7-5/8REG | 194 | 100-500 | 30-95 |
| API 7-5/8REG | API 7-5/8REG | 194 | 100-500 | 30-95 |
| Filetage de la boîte | Filetage de la boîte | Diameter/A(mm) | Longueur/L(mm) | Poids/kg |
| API 2-3/8REG | API 2-3/8REG | 76 | 200-500 | 5.5-14.5 |
| API 2-3/8REG | API 2-7/8REG | 102 | 200-500 | 10.5-30 |
| API 2-3/8REG | API 3-1/2REG | 114 | 200-500 | 12-35 |
| API 2-7/8REG | API 2-7/8REG | 102 | 200-500 | 10.5-30 |
| API 2-7/8REG | API 3-1/2REG | 114 | 200-500 | 12-35 |
| API 2-7/8REG | API 4-1/2REG | 140 | 200-500 | 18-51 |
| API 3-1/2REG | API 3-1/2REG | 114 | 200-500 | 12-35 |
| API 3-1/2REG | API 4-1/2REG | 140 | 200-500 | 18-51 |
| API 4-1/2REG | API 4-1/2REG | 140 | 200-500 | 18-51 |
| API 4-1/2REG | API 2-7/8REG | 140 | 200-500 | 18-51 |
| API 4-1/2REG | API 5-1/2REG | 168 | 250-1000 | 25-73 |
| API 5-1/2REG | API 5-1/2REG | 168 | 300-1000 | 25-73 |
| API 5-1/2REG | API 6-5/8REG | 168 | 300-1000 | 25-73 |
| API 6-5/8REG | API 6-5/8REG | 168 | 300-1000 | 25-73 |
| API 6-5/8REG | API 4-1/2REG | 168 | 300-1000 | 25-73 |
| API 6-5/8REG | API 7-5/8REG | 178 | 300-1000 | 26.5-80.5 |
| API 7-5/8REG | API 7-5/8REG | 178 | 300-1000 | 26.5-80.5 |
