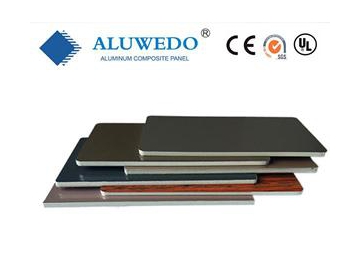

Anti-scratch Aluminum Composite Panel, ACP Panel
Aluwedo® anti-scratch aluminum composite panels have varies surface designs for aluminum sheets. The paint of the aluminum surface is specially made for protecting the metal composite panel surface from scratch or damage.
Advantages
1. Anti scratch
2. The Aluminum composite panel is of extremely light weight
3. Featuring excellent flatness and high flexural strength
4. Versatile processing options using routing and folding techniques
5. A variety of panel specifications
6. Embossed surface
7. Easily cleaned
8. Resistant to fungus, moss, decay, light and UV
9. Extreme large durability
10. Recyclable
Raw Material
a. High strength aluminum alloy A1100, A3003
b. LDPE core
c. Surface coating: PE PVDF FEVE coating, and Dupont adhesive film
Specifications and Dimension
a. Thickness: 2-8mm
Recommended: 3mm
b. Width: 1000-2000mm
Recommended: 1220mm, 1250mm, 1500mm, 2000mm
c. Length: up to 5800mm or others as required
d. Aluminum thickness: 0.21~0.5mm
e. *Custom width and length is available upon request (subject to the minimum order quantities)
| Testing item | Standard | Result |
| Unit weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal expansion | ASTM D696 | 24-28 |
| Thermal deformation temperature | ASTM D648 | 115℃ |
| Thermal conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural rigidity | ASTM D393 | 14.0*10^5 |
| Impact resistance | ASTM D732 | 1.64kgf |
| Adhesive strength | ASTM D903 | 0.77kg/mm |
| Flexural elasticity | ASTM D790 | 4030kg/mm2 |
| Shear resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire propagation | ASTM E84 | qualified |
| Wind-pressure resistant | ASTM E330 | passed |
| Waterproof property | ASTM E331 | passed |
